Designing a Hospital on a Tight Plot: Making Every Square Foot Count in Healthcare Architecture

Building a hospital on limited land presents unique challenges that require creative thinking and smart planning. As urban areas become more crowded and land prices soar, healthcare facilities must adapt to smaller footprints while maintaining quality patient care. This comprehensive guide explores practical strategies for creating efficient, functional hospitals on compact sites.

Understanding Space Constraints in Modern Healthcare Design

When you're tasked with designing a hospital on a small plot, every decision matters. Limited space doesn't mean compromising on patient care or staff efficiency. Instead, it calls for intelligent design choices that maximize vertical space, streamline workflows, and create multipurpose areas that serve various functions throughout the day.

Modern healthcare facilities face increasing pressure to deliver comprehensive services within smaller footprints. Urban hospitals particularly struggle with this challenge, as available land becomes scarce and expensive. The key lies in understanding how to balance clinical requirements with spatial limitations while ensuring compliance with healthcare regulations and building codes.

Critical Factors Affecting Hospital Plot Utilization

Several elements influence how effectively a hospital uses its available space. Patient flow patterns determine corridor widths and waiting area sizes. Equipment requirements shape room dimensions and ceiling heights. Emergency vehicle access needs specific turning radii and parking arrangements. Each factor requires careful consideration during the planning phase.

Local zoning laws and healthcare regulations add another layer of complexity. Building height restrictions might limit vertical expansion options. Setback requirements reduce usable ground area. Parking minimums consume valuable plot space that could otherwise support clinical functions. Successful designs work within these constraints rather than fighting against them.

Vertical Design Strategies for Compact Hospital Plots

Going upward offers the most obvious solution when ground space is limited. Multi-story hospital designs can accommodate extensive medical programs on minimal land areas. However, vertical hospitals require special attention to patient movement, emergency evacuation, and departmental relationships.

Stacking Departments Effectively

Strategic department placement reduces patient travel distances and improves operational efficiency. Emergency departments typically occupy ground floors for immediate ambulance access. Surgical suites often sit on upper floors where controlled environments are easier to maintain. Diagnostic imaging departments benefit from lower floor placement due to heavy equipment weight requirements.

Elevator and Circulation Planning

Vertical hospitals depend heavily on elevator systems. Separate elevator banks for patients, visitors, staff, and materials prevent bottlenecks and maintain infection control standards. Express elevators connecting key departments reduce wait times during critical situations. Service elevators sized for hospital beds and equipment ensure smooth operations.

Stairwell placement affects both daily operations and emergency evacuation. Building codes mandate specific stairwell quantities based on floor area and occupancy. Smart designs integrate these requirements seamlessly while maintaining clear wayfinding for visitors and staff.

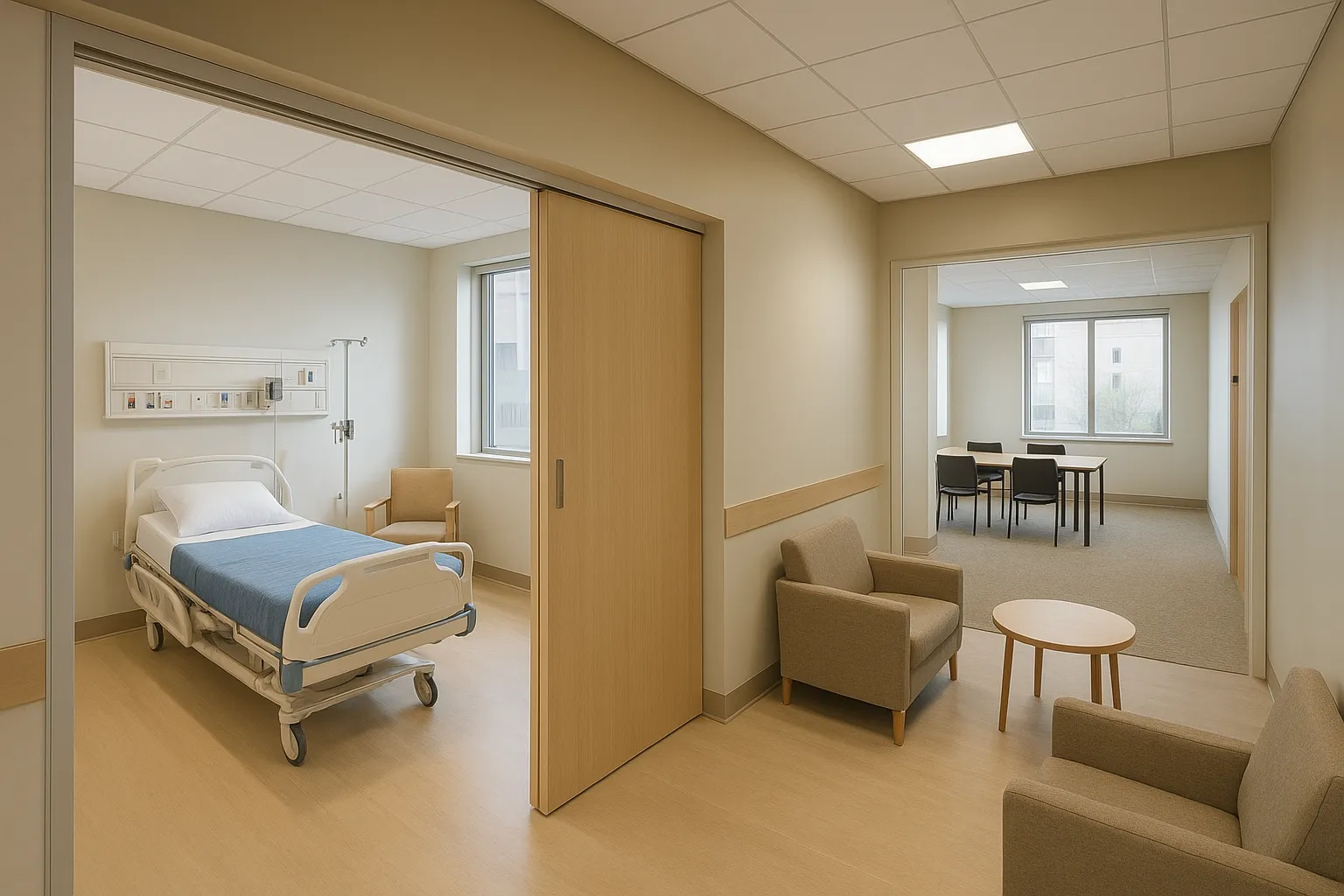

Space-Saving Design Solutions That Actually Work

Creative space utilization techniques help hospitals fit more functionality into less area. These approaches go beyond simple square footage calculations to consider how spaces function throughout different times and situations.

Modular and Flexible Room Designs

Adaptable spaces respond to changing healthcare needs without major renovations. Modular wall systems allow quick reconfiguration as departments grow or shrink. Standardized room sizes simplify construction and enable future flexibility. Universal patient rooms accommodate various acuity levels, reducing patient transfers and improving satisfaction.

Examination rooms designed for multiple specialties maximize utilization rates. Mobile equipment and furniture support different clinical activities within the same space. Ceiling-mounted utilities free floor space while maintaining full functionality. These flexible approaches help hospitals adapt to evolving medical practices and patient volumes.

Shared Facilities and Multi-Use Spaces

Combining related functions reduces overall space requirements. Conference rooms double as training facilities during off-hours. Waiting areas serve multiple departments through careful scheduling. Staff break rooms accommodate educational sessions and meetings. This approach requires coordination but significantly reduces spatial needs.

• Central sterile supply serves multiple surgical suites and procedure rooms
• Shared imaging facilities support emergency, inpatient, and outpatient needs
• Combined reception areas handle multiple clinic check-ins
• Multipurpose therapy gyms serve physical, occupational, and speech therapy
• Convertible spaces transform from daytime clinics to evening urgent care

Technology Integration for Space Efficiency

Modern technology enables hospitals to do more with less space. Digital systems replace physical storage areas. Automated equipment reduces manual handling zones. Telemedicine capabilities extend specialist reach without dedicated consultation rooms.

Digital Infrastructure Replacing Physical Space

Electronic health records eliminate massive file storage rooms. Digital imaging systems remove film processing areas and archive spaces. Cloud-based systems reduce on-site server room requirements. These digital transitions free significant square footage for clinical use.

Pneumatic tube systems transport lab samples and medications without dedicated corridor space. Automated guided vehicles deliver supplies through existing pathways. Robot-assisted surgery equipment provides advanced capabilities within standard operating room footprints. Each technology investment reduces spatial demands while improving operational efficiency.

Smart Building Systems and Automation

Intelligent building management systems optimize space utilization through real-time monitoring and adjustment. Occupancy sensors identify underused areas for reallocation. Automated parking systems fit more vehicles in less space. Smart lighting and HVAC systems reduce mechanical room requirements while improving energy efficiency.

Bedside tablets give patients control over room environment and entertainment without bulky equipment. Nurse call systems integrate with mobile devices, reducing fixed station requirements. Automated dispensing cabinets streamline medication storage and distribution. These technologies create efficiency gains that translate directly into space savings.

Patient Flow Optimization in Constrained Spaces

Efficient patient movement patterns prevent congestion and improve care delivery. Well-designed flows separate different user groups while maintaining clear pathways for emergency situations.

Streamlined Admission and Discharge Processes

Compact hospitals can't afford sprawling registration areas or discharge lounges. Self-service kiosks handle routine check-ins without dedicated desk space. Mobile admission teams meet patients in clinical areas rather than separate offices. Discharge planning begins at admission, reducing length of stay and bed requirements.

Fast-track areas separate minor cases from complex emergencies. Observation units prevent unnecessary admissions while ensuring appropriate care. Discharge lounges free beds quickly while patients await transportation. Each strategy improves throughput without expanding physical footprint.

Corridor and Waiting Area Design

Narrow sites require careful corridor planning to maintain required widths while minimizing circulation space. Double-loaded corridors serve rooms on both sides, improving efficiency. Alcoves provide equipment parking without blocking traffic flow. Clear signage and wayfinding reduce confusion and wandering.

Waiting areas serve multiple functions through thoughtful design. Built-in seating maximizes capacity while maintaining clear pathways. Natural light and views reduce perceived crowding. Separate quiet zones accommodate different patient needs within limited space.

Regulatory Compliance Within Space Limitations

Healthcare facilities must meet extensive regulatory requirements regardless of size constraints. Building codes, healthcare standards, and accessibility guidelines establish minimum spatial requirements that can't be compromised.

Meeting Healthcare Standards on Small Plots

Accreditation bodies establish specific requirements for room sizes, corridor widths, and department relationships. Creative compliance strategies work within these parameters while maximizing efficiency. Variance requests might allow alternative solutions that meet safety and quality intent without exact dimensional compliance.

Fire Safety and Emergency Egress Planning

Life safety requirements often drive spatial decisions in compact hospitals. Smoke compartments limit floor plate sizes. Exit stair locations affect departmental layouts. Fire-rated construction adds thickness to walls and floors. Understanding these requirements early prevents costly redesigns.

Emergency evacuation plans must account for patient mobility limitations. Areas of refuge provide temporary safety for wheelchair users. Evacuation elevators supplement stairways for patient movement. Defendable spaces allow shelter-in-place strategies when full evacuation isn't feasible. These features require space but ensure safety during emergencies.

Parking and External Space Management

Limited plot sizes make parking particularly challenging. Healthcare facilities need spaces for patients, visitors, staff, and emergency vehicles. Creative solutions balance these competing demands.

Multi-Level and Underground Parking Solutions

Structured parking maximizes vehicle capacity on minimal land. Underground parking preserves ground level for hospital functions. Rooftop parking on lower building sections provides additional capacity. Automated parking systems fit more vehicles through reduced maneuvering space requirements.

Valet parking services reduce self-park space needs. Off-site parking with shuttle services moves some demand away from the main campus. Shared parking agreements with neighboring facilities provide overflow capacity. Transportation demand management programs reduce overall parking requirements through alternative commute options.

Emergency Vehicle Access and Helipads

Emergency departments need dedicated ambulance bays protected from weather. Multiple approach routes prevent blockages during peak times. Clear zones around entrances allow patient transfer without congestion. These requirements consume valuable ground space but remain non-negotiable.

Rooftop helipads serve air ambulances without ground-level space consumption. However, they require structural reinforcement, elevator access, and clear flight paths. Ground-level helipads might share space with parking or other functions during non-emergency times. Either option requires careful planning to balance space efficiency with operational needs.

Sustainable Design Approaches for Small Hospital Sites

Sustainability and space efficiency often go hand-in-hand. Green building strategies reduce mechanical space requirements while improving indoor environmental quality.

Green Building Features That Save Space

High-performance building envelopes reduce HVAC equipment sizes. Natural ventilation strategies minimize ductwork requirements. Daylighting reduces electrical loads and transformer needs. Each sustainable strategy contributes to overall space efficiency.

Green roofs provide stormwater management without ground-level detention ponds. Solar panels generate power without additional land consumption. Geothermal systems eliminate cooling towers and reduce mechanical footprints. These features require initial investment but provide long-term space and operational benefits.

Natural Light and Ventilation Strategies

Compact hospitals benefit from strategic daylight penetration. Light wells bring natural light to interior spaces. Clerestory windows illuminate deep floor plates. Light shelves bounce daylight deeper into rooms. These strategies reduce artificial lighting needs while creating pleasant environments.

Operable windows provide natural ventilation where infection control permits. Stack ventilation reduces mechanical system requirements. Night flush cooling pre-conditions spaces without active cooling. These passive strategies work particularly well in appropriate climates, reducing both space and energy requirements.

Case Examples: Successful Compact Hospital Designs

Real-world examples demonstrate how creative design overcomes spatial constraints. These facilities prove that limited land doesn't prevent excellent healthcare delivery.

Urban Micro-Hospitals

Micro-hospitals provide emergency and inpatient services in 15,000-50,000 square feet. These facilities focus on core services while referring complex cases to larger hospitals. Efficient designs pack surprising capability into minimal footprints. Standardized layouts enable rapid deployment in urban neighborhoods.

Success factors include careful service line selection, efficient staffing models, and strong referral networks. Technology enables remote specialist consultations without on-site presence. Pharmacy services might be contracted rather than maintained internally. Laboratory testing uses point-of-care devices supplemented by courier services for complex tests.

Vertical Expansion Projects

Many hospitals expand upward when horizontal growth isn't possible. Structural capacity planning during initial construction enables future vertical additions. Mechanical systems sized for expansion avoid costly retrofits. Elevator shafts extended above current floors simplify future connections.

Phased construction minimizes operational disruption during expansion. Temporary relocations maintain services while work proceeds. Off-site construction techniques reduce on-site construction time. Careful scheduling coordinates multiple trades in limited staging areas. These projects require detailed planning but successfully add capacity without additional land.

Future Trends in Space-Efficient Hospital Design

Healthcare delivery continues evolving, affecting spatial requirements and design approaches. Anticipating future trends helps create adaptable facilities that remain relevant despite changing needs.

Telemedicine and Remote Care Integration

Virtual care reduces physical space needs for certain services. Telemedicine suites replace multiple consultation rooms. Remote monitoring reduces inpatient bed requirements. Home hospital programs treat patients outside traditional settings. These trends suggest future hospitals might need less physical space for direct patient care.

However, technology infrastructure requirements increase correspondingly. Data centers, communication hubs, and command centers need dedicated space. Staff areas for remote care coordination become essential. The net effect might shift rather than reduce overall space needs, requiring careful planning for technology-enabled care delivery.

Prefabrication and Modular Construction

Off-site construction techniques enable faster deployment on constrained sites. Prefabricated patient room modules arrive complete with finishes and fixtures. Modular operating rooms provide fully equipped surgical environments. These approaches reduce on-site construction time and staging area requirements.

Standardization enables mass customization within modular frameworks. Bathroom pods provide consistent quality while reducing construction complexity. Mechanical modules simplify installation and maintenance. Headwall units integrate multiple patient room systems in compact assemblies. These techniques improve quality while reducing spatial requirements for construction activities.

Common Pitfalls to Avoid When Designing on Tight Plots

Learning from others' mistakes helps avoid costly errors. These common issues arise frequently in space-constrained hospital projects.

Overcrowding and Inadequate Circulation

Pushing too much program into limited space creates operational problems. Congested corridors slow patient transport and frustrate staff. Inadequate storage forces equipment into hallways. Undersized support areas compromise clinical functions. Right-sizing remains critical despite space pressures.

Minimum code requirements represent floors, not ceilings. Slightly wider corridors improve flow and reduce stress. Adequate storage prevents clutter accumulation. Properly sized support spaces enable efficient operations. Small investments in additional space pay dividends through improved functionality.

Insufficient Infrastructure Planning

Mechanical, electrical, and plumbing systems need adequate space for installation, operation, and maintenance. Undersized mechanical rooms prevent proper equipment access. Inadequate shaft space limits future upgrade options. Insufficient ceiling heights restrict ductwork routing. These infrastructure constraints create long-term operational challenges.

Future expansion possibilities require advance planning. Structural capacity for vertical additions needs initial investment. Utility connections sized for growth avoid expensive upgrades. Technology pathway reservations enable system additions. Planning for change costs less than retrofitting later.

Cost-Benefit Analysis of Compact Hospital Designs

Financial considerations often drive decisions about hospital size and configuration. Understanding cost implications helps balance spatial efficiency with operational effectiveness.

Initial Investment vs. Long-term Operational Costs

Compact designs typically reduce construction costs through smaller building footprints. However, complex vertical circulation and specialized space-saving features might increase unit costs. Structured parking costs more than surface lots. High-rise construction requires different techniques than low-rise buildings.

Operational expenses vary with design decisions. Vertical hospitals have higher elevator maintenance costs. Compact layouts might require more staff for patient transport. Energy costs depend on building configuration and system efficiency. Life-cycle cost analysis reveals true financial implications beyond initial construction.

Return on Investment Considerations

Space efficiency affects revenue generation potential. Higher patient volumes per square foot improve financial performance. Flexible spaces accommodate service line changes without renovation. Efficient layouts reduce staff travel time, improving productivity. Each design decision influences long-term financial sustainability.

Market dynamics affect space utilization strategies. Urban locations command premium reimbursements that justify higher construction costs. Specialty services generate more revenue per square foot than general medical units. Outpatient facilities typically produce better returns than inpatient beds. Understanding these relationships guides programming decisions for constrained sites.

Conclusion

Designing hospitals on tight plots challenges architects and planners to think creatively while maintaining quality patient care standards. Success requires balancing multiple competing demands: clinical functionality, regulatory compliance, operational efficiency, and financial sustainability. The strategies discussed here provide a framework for approaching these complex projects.

Vertical design strategies, flexible spaces, technology integration, and careful planning enable hospitals to thrive despite spatial constraints. Real-world examples prove that limited land doesn't prevent excellent healthcare delivery. As medical practice continues evolving, adaptable designs ensure facilities remain relevant despite changing needs.

The key to successful compact hospital design lies in early planning, stakeholder engagement, and willingness to challenge traditional approaches. By focusing on operational efficiency and patient experience rather than square footage alone, designers create facilities that serve communities effectively regardless of site limitations. These projects require extra effort but deliver lasting value through improved healthcare access in space-constrained urban environments.

Frequently Asked Questions

What is the minimum land area required to build a functional hospital?

A functional micro-hospital can operate on as little as 0.5 to 1 acre of land, though this depends heavily on local regulations, service offerings, and whether structured parking is used. Community hospitals typically need 3-5 acres minimum, while full-service medical centers require 10+ acres. The key isn't just land area but how efficiently it's used through vertical construction, structured parking, and optimized layouts. Urban hospitals successfully operate on much smaller plots than suburban facilities by building upward rather than outward.

How do compact hospitals maintain patient privacy in smaller spaces?

Patient privacy in compact hospitals relies on smart design choices rather than excessive square footage. Sound-absorbing materials reduce noise transmission between rooms. Strategic room layouts prevent direct sight lines between patient areas. Technology solutions like white noise systems mask conversations. Flexible privacy screens and curtain systems create visual barriers when needed. Single patient rooms, though smaller, provide better privacy than larger multi-bed wards. The focus shifts from distance-based privacy to designed privacy through materials, layouts, and operational protocols.

Can emergency departments function effectively in space-constrained hospitals?

Yes, emergency departments can work well in limited space through careful design and operational strategies. Fast-track areas separate minor cases from critical patients, improving flow efficiency. Vertical integration places related services like imaging and lab nearby, reducing transport distances. Results waiting areas free treatment spaces more quickly. Chair-centric treatment zones handle ambulatory patients without traditional bed requirements. Observation units prevent unnecessary admissions. These strategies enable emergency departments to handle significant volumes despite spatial constraints.

What role does prefabrication play in maximizing space on tight hospital plots?

Prefabrication significantly reduces on-site construction space requirements, a major advantage on tight plots. Modular units arrive nearly complete, minimizing material storage and staging areas. Bathroom pods, headwall units, and even entire patient rooms can be manufactured off-site. This approach reduces construction timelines by 30-50%, meaning less disruption to ongoing operations. Quality improves through controlled factory conditions. While transportation and crane access need consideration, prefabrication generally enables more efficient use of limited site area during construction phases.

How do building codes and healthcare regulations impact space planning in compact hospitals?

Building codes and healthcare regulations establish minimum requirements that significantly influence space planning. Fire codes mandate corridor widths, exit quantities, and smoke compartment sizes. Healthcare regulations specify minimum room dimensions, clearances around equipment, and department relationships. Accessibility standards require turning radii, door widths, and bathroom configurations. These requirements can't be compromised but creative compliance strategies exist. Variance requests might allow alternative solutions. Multi-function spaces can meet different codes at different times. Early regulatory consultation prevents costly redesigns and ensures compact designs still meet all applicable standards.
